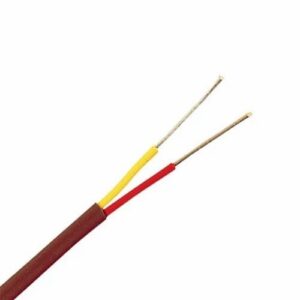

Thermocouple Cable: An Overview

Thermocouple cables are exactly the same to instrumentation cables. Both are used to measure process temperatures. The manufacturing procedure for these cables is comparable to National Agencies’ paired instrumentation cable, with the exception of the conductor material. Thermocouple cables are used for quantifying temperature. This in a wide range of applications. Thermocouple Cables are used to connect control surfaces to pyrometers, allowing for precise temperature indication and control, we sell Thermocouple Cables in quantity. We are one of the most renowned Thermocouple Cable Suppliers in Kolkata, West Bengal, Odisha, Bihar, Jharkhand, Chhattisgarh, and Assam. Thermocouple Cables are essential components in temperature measurement systems, acting as the connection between a thermocouple sensor and the measurement or control device. These cables are specifically designed to maintain the thermoelectric characteristics of the thermocouple over long distances, ensuring accurate temperature readings.

What is a Thermocouple Cable?

A Thermocouple Cable is constructed using materials that match the thermocouple type (e.g., Type K, J, T, etc.) and is used to extend the thermocouple signal from the sensor to the instrumentation. These cables are available in two main types: extension cables (EX) and compensating cables (CX).

• Extension Cables (EX):Made from the same materials as the thermocouple wires.
• Compensating Cables (CX):Made from materials with similar thermoelectric properties to the thermocouple wires but at a lower cost.

Key Features of Thermocouple Cables

• Temperature Range:Designed to withstand extreme temperatures based on the thermocouple type.
• Accuracy:Ensures minimal signal degradation for precise temperature readings.
• Durability:Resistant to environmental factors like moisture, chemicals, and mechanical stress.
• Shielding:Comes with shielding to minimize electromagnetic interference (EMI).
• Insulation Options:Available in various insulation types, such as PVC, PTFE, or fiberglass, for different environments.

Types of Thermocouple Cables

• Type K (Chromel-Alumel):Ideal for high-temperature applications, up to 1260°C.
• Type J (Iron-Constantan):Suitable for lower temperature ranges, up to 760°C.
• Type T (Copper-Constantan):Best for cryogenic applications, up to 370°C.
• Type E (Chromel-Constantan):Offers high accuracy at lower temperatures.

Applications of Thermocouple Cables

• Industrial Processes:Used in furnaces, kilns, and reactors for temperature monitoring.
• Aerospace:Essential in engine temperature monitoring systems.
• Automotive:Used in exhaust systems and engine diagnostics.
• HVAC Systems:For precise temperature control in heating, ventilation, and air conditioning.
• Food and Beverage:Ensures accurate temperature readings in processing and storage.
• Carbon composite curing for aircraft, aerospace, and various other industries.
• Autoclaves, furnaces, and ovens for multiple purposes.
• Heat treatment and annealing in the production of metals and metal parts of any kind.
• Forecasting accurately temperature measurement for medicinal products, chemicals, and petrochemicals.

Technical Specifications

Benefits of Thermocouple Cables

• Cost-effective:Reduces the need for expensive thermocouple materials over long distances.
• Reliable:Provides stable and accurate signal transmission.
• Customizable:Available in various configurations to suit specific applications.
